Automated CNC Plasma & Oxy-Fuel Pipe Profiling Solution (PPCM)
APS Welding's Pipe Profile Cutting Machine (PPCM) is a purpose-built industrial automation system designed to execute rapid, ultra-precise contouring, saddle cuts, beveling, and complex profiling on pipes across heavy industrial sectors.
Engineered and manufactured 100% in-house at our ISO 9001:2015 certified facility in Valsad, Gujarat, the APS PPCM system eliminates manual marking out, reduces costly human layout errors, and delivers flawless, repeatability-proven edge preparation required for direct fit-up and code-compliant welding.
- Automated multi-axis CNC contour cutting
- Integrates heavy 200A plasma & oxy-fuel tools
- Automatic torch height control (THC) with surface sensors
- Zero operator manual layout or marking required
- Burr-free edge quality for immediate weld preparation
- Built-in datum auto-calibration before every cycle
Complete Technical Parameters
Built to continuous industrial heavy-duty specifications. Review standard multi-axis system performance ratings below.
| Parameter | Specification Standard | Engineering Application Notes |
|---|---|---|
| Pipe Diameter Range | 4 to 24 Inches (100 mm to 610 mm OD) | Accommodates standard small to large-bore industrial process piping. |
| Wall Thickness Capacity | Up to 30 mm (Plasma / Oxy-Fuel) | Handles heavy-wall carbon steel, stainless steel, and alloy pipes. |
| Continuous Pipe Length | Up to 12 Meters | Compatible with standard full-length mill pipes for continuous processing. |
| Chuck Rotation Speed | 0.1 to 1.6 RPM (Variable VFD Control) | Synchronized chuck rotation ensures consistent cut velocity across all profiles. |
| Cutting Bevel Angle Range | −90° to +90° | Enables straight cuts, single-bevel, miters, and compound profile preparation. |
| Plasma Cutting Source | Rhino Cut 200 (200A Duty Rating) | High-definition plasma source with 50L integrated liquid cooling tank. |
| Clamping Chuck System | 24-Inch Heavy-Duty 3-Jaw Manual Chuck | Provides high clamping force and concentric stability during rotation. |
| Precision Rail Bed Length | 13-Meter Precision Guided Track | Heavy rigid bed prevents torch vibration along long travel lengths. |
Built-In Cutting Automation Intelligence
Designed for seamless workshop integration, safe operation, and minimal setup downtime.
Auto Torch Calibration
The system automatically returns to initial 0° reference datum and Y-axis home prior to initiating each cut, guaranteeing perfect zero alignment across repeat jobs.
Sensor-Based Height Control (THC)
Real-time proximity sensors detect pipe ovality and automatically maintain optimal pierce and cutting heights, ensuring uniform cut quality on imperfect pipes.
Job Length Auto Adjustment
Automatic linear carriage positioning driven by CNC job code. The torch travels precisely to the next cut location without manual operator repositioning.
Y-Axis Collision Guard
Integrated proximity sensors restrict erratic torch travel, preventing torch head damage, nozzle impact, or mechanical strain during complex rotation angles.
Configurable Run-In Distance
Allows pre-setting pierce-entry lead lengths up to 25mm outside the primary cutting contour, eliminating hole blow-out marks on the final pipe profile edge.
Stepper Motor Chuck Drive
High-torque Nema 34 Stepper Motor paired with a 2HP induction motor and 100:1 RV90 heavy reduction gear system delivers smooth, vibration-free chuck rotation.
Comparing Pipe Profile Cutting Methods
Selecting the right process for your pipe fabrication line depends on material thickness, capital investment, and desired output volume.
| Technology | Optimal Thickness | Cutting Speed | Capital Investment | B2B Heavy Fabrication Suitability |
|---|---|---|---|---|
| CNC Plasma (APS PPCM) | 5 mm to 30 mm | Very High | Moderate / High ROI | Best overall balance for structural steel, heavy piping, pressure vessels, and offshore fabrication. |
| Industrial Laser | 1 mm to 12 mm | Extremely High | Very High | Ideal for high-volume thin tubing; restricted on heavy-wall steel pipes due to severe capital cost. |
| Oxy-Fuel CNC | 15 mm to 100+ mm | Moderate | Low / Moderate | Excellent for extra-thick carbon steel wall sections; limited on stainless steel or non-ferrous alloys. |
| High-Pressure Waterjet | 1 mm to 50 mm | Slow | High | Required for non-heat-affected zone (HAZ) sensitive alloys; high abrasive consumable costs. |
Industrial Component Breakdown
Every PPCM machine is constructed using heavy-duty, proven standard industrial components built for 24/7 continuous duty cycle performance.
Plasma Source: Rhino Cut 200A
Delivers heavy-amperage plasma arc cutting with a dedicated 50L coolant tank, designed to handle heavy duty cycles under high ambient factory temperatures.
24-Inch Heavy Clamping Chuck
Manual multi-jaw chuck provides positive mechanical locking for pipes from 4" up to 24" outer diameter, resisting rotational backlash during profile cuts.
LCD CNC Multi-Axis Control Module
User-friendly industrial controller supporting direct input of joint angles, pipe diameters, wall thickness, bevel requirements, and run-in offsets.
13-Meter Precision Guided Track
Hardened linear motion rails with heavy cable drag chain, protecting control and power leads during long longitudinal carriage travel.
Factory Validation & Performance Testing
All machines undergo rigorous load testing and profile verification at our manufacturing facility before overseas shipment.
Test Pipe Outer Diameter
Validated on 305mm carbon steel pipe test specimens.
Validated Cut Wall
Clean, smooth cut edge with minimal heat-affected zone.
Layout Marking
Direct CNC CAD execution without manual drafting.
Joint Preparation
Substantially reduces fitting and grinding hours per joint.

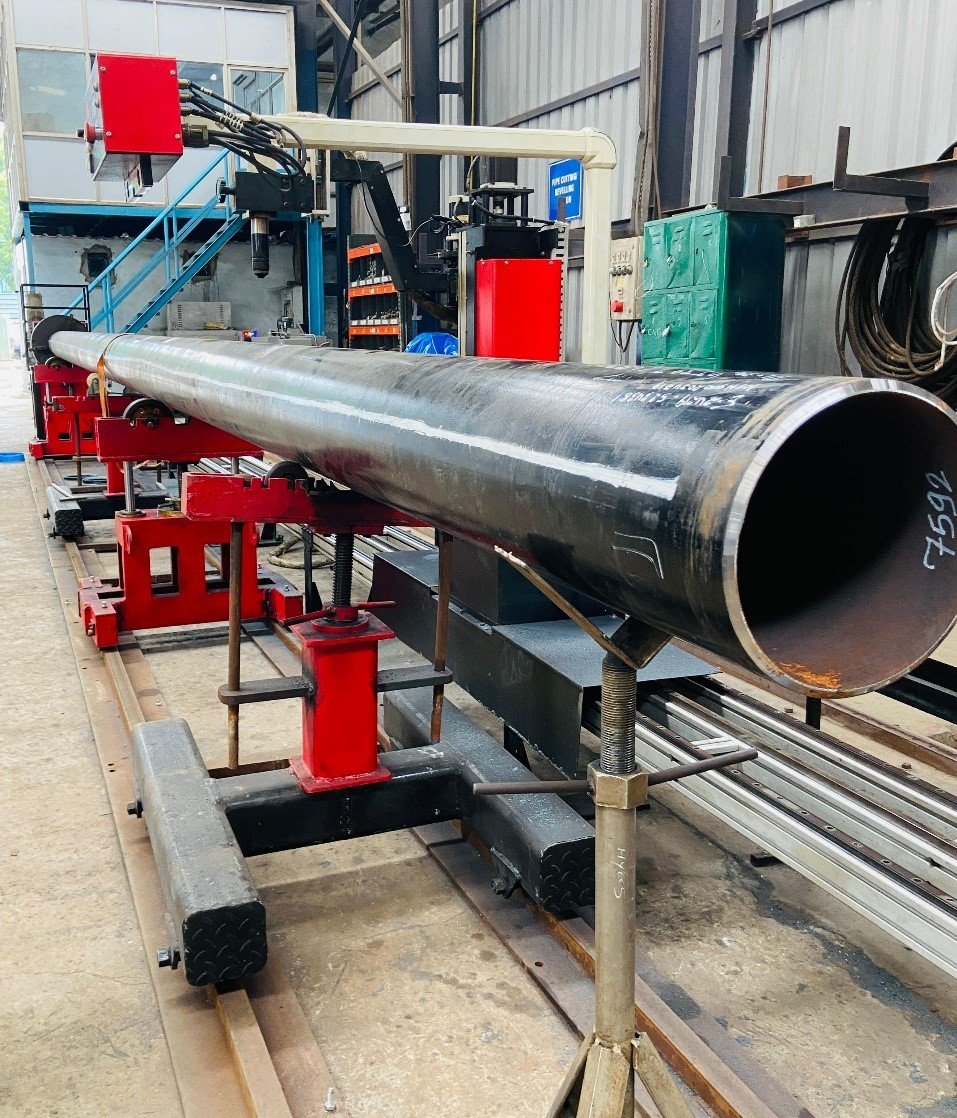

Global Industrial Applications
Empowering fabricators across sectors where exact pipe joint geometry is mandatory.
Oil & Gas Pipelines
High-speed branch connections, manifolds, pressure headers, and saddle joints for midstream and refinery piping installations.
Shipbuilding & Offshore
Structural jacket tubulars, vessel hull pipe networks, crane boom frameworks, and offshore platform piping spools.
Power Generation
Thermal power boiler tubes, heat exchanger header pipes, steam lines, and penstock pipe structural joints.
Structural Steel Construction
Architectural tubular trusses, space frames, stadium roof columns, and heavy civil engineering pipe structures.
Heavy Engineering Fabrication
Earthmoving equipment chasses, pressure vessel nozzles, industrial machine frames, and process plant piping.
Chemical & Fertilizer Plants
High-integrity alloy process lines requiring accurate fit-up for 100% X-ray certified butt weld joints.
Frequently Asked Questions
What pipe diameter and wall thickness range does the APS PPCM system support?
The standard APS PPCM handles outer pipe diameters from 4 inches up to 24 inches (100mm to 610mm) and continuous wall thicknesses up to 30mm using plasma or oxy-fuel cutting attachments along a 13-meter rail track.
Can the cutting system be customized for international power grid standards?
Yes. As an original equipment manufacturer, APS builds machines to support global site electrical requirements including 380V, 400V, 415V, or 480V at 50Hz or 60Hz 3-phase power input.
Does APS provide installation and operator training for overseas buyers?
APS provides complete commissioning support, electrical foundation layout documentation, and comprehensive video/on-site operator training packages to ensure immediate production readiness.
What certifications and quality standards govern APS machinery?
APS Welding operates under an ISO 9001:2015 certified quality system covering design, procurement, assembly, and full load testing. CE compliance documentation is available for European export orders.
