Engineered for low contact resistance, extreme heat tolerance, and reliable return-current loops in high-amperage MIG, TIG, and Submerged Arc Welding.
In modern industrial fabrication, the humble ground clamp—properly termed the workpiece connection clamp—is frequently the single most overlooked element of the electrical welding circuit. While fabricators in Northern Vietnam spend substantial capital optimizing inverter power sources, wire feeders, and shielding gas purities, systemic voltage drops, micro-arcing, thermal degradation, and erratic arc stability can often be traced directly to an inadequate earth return path.
As a senior supplier and global exporter dedicated to serving Hanoi's rapidly expanding industrial clusters—including the Thang Long Industrial Park, Dong Anh Mechanical Manufacturing District, Quang Minh Industrial Zone, and the extended Hanoi-Hai Phong industrial corridor—we manufacture heavy-duty, high-conductivity earth clamps and 3D table fixturing systems engineered specifically to solve electrical return bottlenecking under grueling tropical production cycles.
A welding power source operates on a continuous closed loop. Current flows from the power terminal, through the torch assembly, across the electric arc, into the base metal workpiece, and back to the transformer/inverter via the ground clamp and cable assembly. According to Ohm's Law ($V = I \cdot R$) and Joule's First Law ($P = I^2 \cdot R$), any electrical contact resistance ($R_c$) present at the ground clamp connection converts valuable welding energy directly into radiant thermal waste.
At standard heavy industrial welding currents (e.g., 400 Amperes continuously), even a miniscule contact resistance of $0.015 \text{ Ohms}$ at an oxidized or poorly clamped joint results in a localized voltage drop of $\Delta V = 6 \text{ Volts}$ and a heat dissipation of $P = 2,400 \text{ Watts}$ directly at the clamping jaw. This extreme thermal spike leads to severe thermal runaway, annealing the clamp spring, melting cable insulation, oxidizing contact surfaces, and inducing severe voltage fluctuations at the arc.
Exporting industrial welding equipment to Hanoi requires a deep understanding of local microclimates and operational dynamics. Northern Vietnam experiences high seasonal relative humidity (often exceeding 85% to 90% during the monsoon period) alongside high summer ambient temperatures reaching $40^\circ\text{C}$ in non-air-conditioned fabrication bays.
Under these ambient conditions, standard stamped-steel ground clamps deteriorate rapidly due to atmospheric oxidation and galvanic corrosion. Key localized challenges observed across Hanoi's industrial sectors include:
Selecting the ideal ground clamp geometry and material breakdown depending on workpiece geometry, material metallurgy, and amperage requirements.
Forged from high-density C36000 brass alloys, G-Type screw-lock ground clamps offer unmatched mechanical clamping pressure. Designed for structural steel beams and heavy plate, the screw-driven copper pad penetrates surface oxide layers to establish a gas-tight electrical bond impervious to thermal loosening.
Utilizing high-coercivity Neodymium (NdFeB) magnetic cores with integrated mechanical On/Off rotary switches, magnetic ground clamps attach instantly to flat, curved, or pipe surfaces without requiring edge clamping space. When switched off, magnetic debris wipes away cleanly, eliminating particle accumulation.

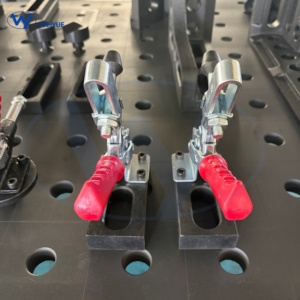

Specifically manufactured for modular 3D welding tables, our vertical fast fixtures and circular push-pull clamps provide instantaneous, repeatable locating and clamping forces up to 450 KG. Made from nitrided alloy steel to resist spatter adhesion during high-mix production.
Featuring heavy spring-loaded jaw mechanisms shielded by high-impact, heat-resistant insulation sleeves. American & Dutch style spring clamps allow rapid hand attachment to sheet metal, structural flanges, and pipeline spools while protecting operators from accidental thermal contact burns.
Designed for vessel rolling, pipe spooling, and automated turntable positioners. Rotary earth clamps incorporate heavy-duty carbon-copper brushes enclosed in grease-sealed housing to prevent cable twisting, arc flaring, and bearing scarring during 360-degree continuous rotation.
We supply fully customized earth clamp cable assemblies integrated with Dinse-style quick connectors (35-50, 50-70, 70-95 sq mm) and ultra-flexible 100% copper welding cables tailored to overseas plant voltage and amperage specifications.
To assist procurement engineers and welding specialists in Hanoi when selecting earth grounding accessories, the following engineering matrix compares physical properties, material conductivity, and duty cycle ratings across our product line:
| Clamp Design / Model Type | Material Composition | Current Rating (Amps @ 60% / 100% Duty) | Max Jaw Opening / Holding Capacity | Ideal Application Scenario in Vietnam |
|---|---|---|---|---|
| Brass G-Type Heavy Earth Clamp | Forged Brass C36000 + Copper Screw Pad | 500A / 400A Continuous | 55 mm to 95 mm Jaw Depth | Heavy structural steel, shipbuilding plates, bridge beam fabrication yards in Dong Anh. |
| Switchable Magnetic Earth Clamp | NdFeB Magnet Core + Brass Contact Ring | 300A / 600A Models Available | 30 KG to 70 KG Magnetic Pull Force | Pressure vessel tanks, large-diameter pipeline spools, flat plate butt welding. |
| Dutch / American Spring Clamp | Galvanized Steel + High-Purity Copper Strap | 200A / 300A / 500A Options | 50 mm to 75 mm Spring Opening | General sheet metal fabrication, maintenance repair shop work, light MIG production. |
| GTY-10247 Toggle Clamp System | Zinc-Plated High-Tensile Forged Steel | Mechanical Holding Fixture (N/A Electrical) | 450 KG Holding Capacity | Precision jig mounting on D28/D16 3D welding tables for repetitive assembly lines. |
| D28 / D16 Fast Positioning Clamp | Case-Hardened Alloy Steel (Spatter Proof) | Mechanical Holding Fixture (N/A Electrical) | Vertical & Horizontal Thrust Locks | Automotive tier-1/tier-2 component assembly, robotic welding cell fixturing. |
Unlike commercial trading companies that package rebranded third-party accessories, our manufacturing facility conducts full metallurgical verification on all raw materials. Our brass castings undergo optical emission spectrometry (OES) to guarantee a minimum copper content of 58-62%, ensuring high electrical conductivity and resistance to stress corrosion cracking.
Every batch of ground clamps undergoes strict temperature-rise testing under continuous current loading in accordance with ISO 9001:2015 quality procedures. We measure jaw tension, spring fatigue resistance across 10,000 mechanical cycles, and contact area electrical resistance to ensure zero product failures upon arrival at customer manufacturing sites in Vietnam.
With over two decades of engineering expertise in the industrial welding industry, our company has installed more than 22,600 welding systems and heavy-duty accessories across global markets. Fabricators in Vietnam choose us as their primary exporter due to five direct manufacturing advantages:
Eliminate intermediary trade markups by sourcing directly from our factory. We offer competitive wholesale bulk pricing for ground clamps, earth accessories, and 3D fixturing systems.
All spring handles, magnetic covers, and cable connectors feature high-grade dielectric insulation materials designed to withstand Northern Vietnam's high humidity and thermal fluctuations.
We maintain streamlined export logistics serving major sea ports including Hai Phong Port and direct air freight channels into Hanoi's Noi Bai International Airport (HAN), ensuring rapid door-to-door transit times.
Addressing key procurement, logistics, and technical application questions from industrial buyers in Vietnam.
A: Brass G-Clamps are ideal for permanent, fixed installations on thick structural beams, I-sections, and heavy plate where high mechanical clamping pressure is required to break through surface rust or mill scale. Switchable Magnetic Ground Clamps are superior when working on large cylindrical vessels, tanks, or flat plates where edge clamping is impossible, enabling instantaneous mounting without damaging the workpiece surface.
A: All ground clamps and welding accessories are exported with complete Commercial Invoices, Packing Lists, Certificates of Origin (Form E or Form AI as applicable), ISO 9001:2015 Quality Certificates, and Factory Inspection Test Reports to ensure rapid customs clearance at Hai Phong port or Hanoi airport.
A: Overheating is caused by high contact resistance ($R_c$) at the clamp jaw or an undersized cable connection. Stamped steel clamps or worn spring jaws fail to maintain adequate surface pressure, causing micro-arcing that generates localized heat up to $200^\circ\text{C}+$. Upgrading to a solid forged brass G-type clamp or high-amperage 500A Dutch earth clamp with heavy copper braided straps eliminates this thermal bottleneck.
A: Yes. Our square plate vertical fixtures and circular push-pull clamps are precision-machined to exact metric tolerances, making them 100% interchangeable with standard international D28 (28mm hole diameter, 100mm grid) and D16 (16mm hole diameter, 50mm grid) modular welding tables and platforms.
A: Standard ground clamps and earth accessories are kept in stock for immediate export dispatch within 3-5 working days. Ocean freight shipments to Hai Phong Port typically take 10-14 days in transit, while urgent express air freight to Hanoi Noi Bai Airport delivers within 3-5 days.
A: Standard ferrite magnets degrade at elevated temperatures. However, our switchable magnetic ground clamps utilize high-temperature NdFeB rare-earth magnets engineered with a high Curie point. They maintain full magnetic saturation and holding force up to continuous working temperatures of $80^\circ\text{C}$ ($176^\circ\text{F}$), preventing accidental detaching during heavy welding runs.
Connect with our senior application engineers to discuss wholesale pricing, custom cable assembly interfaces, or sample testing for your fabrication facility in Hanoi and Northern Vietnam.
