Plasma Cutting Torch Supplier & Suppliers for Brazil

Heavy-Duty Industrial Cutting Systems • ISO 9001:2015 Engineered • High Duty-Cycle Precision

Industrial Cutting & Welding Power Solutions

Explore our high-performance plasma torches, automated circumferential welders, and heavy-duty arc gouging systems designed for Brazilian metalworking industries.

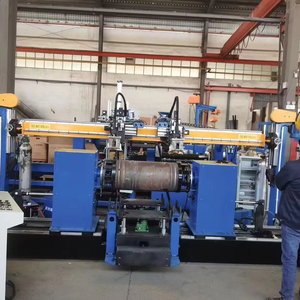

New High Precision 35 kW Pressure Vessel Circumferential Welding Machine

New High Precision 35 kW 380/480 V 5MM Thickness Pressure Vessel Circumferential Welding Machine with Seam Tracking

Send an Inquiry

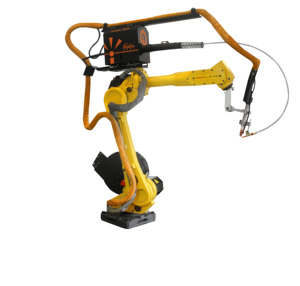

BINGO Robotic AC DC TIG Welder Wire Feeder

BINGO New High Quality Robotic AC DC TIG Welder Wire Feeder-Fully Automated Portable 500A Stainless Steel Copper Aluminum IP54

Send an Inquiry

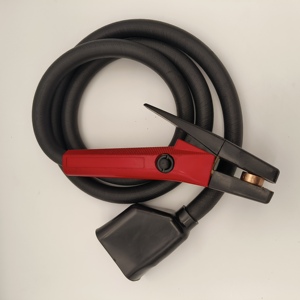

BLACK WOLF Heavy Duty K4 K4000 Welding Torch

BLACK WOLF Heavy Duty K4 K4000 Welding Torch 1000A Carbon Arc Air Gouging Torch

Send an Inquiry

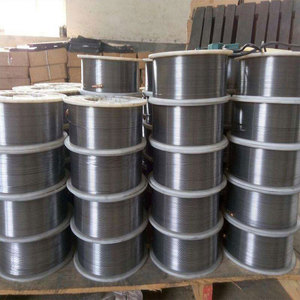

Hardfacing Flux-Cored Welding Wire

Hardfacing Flux-Cored Welding Wire High Hardness Wear Resistant Alloy Wire 1.2mm 1.6mm for Machinery Repair

Send an Inquiry
Circumferential Seam Submerged Arc Welder

Circumferential Seam Submerged Arc Welder

Send an Inquiry
Automatic Column and Boom With TIG MIG SAW

Automatic Column and Boom With TIG MIG SAW Welding Power for Steel Pipe Welding Machine

Send an Inquiry

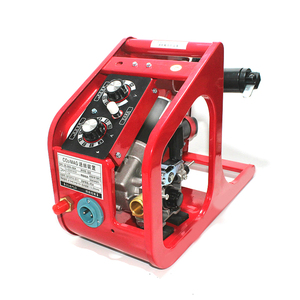

Mig Pana Sonic-style Wire Feeder

Mig Pana Sonic-style Wire Feeder Wire Feeder Mig Welder 24V Tip Tig Wire Feeder

Send an Inquiry
Wugou Automatic Pipe Welding Machine Orbital TIG Equipment

Wugou Automatic Pipe Welding Machine Orbital TIG Equipment with Circular Seam Hardfacing for Pipeline Fabrication and Repair

Send an Inquiry

22,600+

Global Installations

ISO 9001

Certified Quality Systems

100%

Duty Cycle Rating Options

20+ Years

In-House R&D Expertise

Navigating Plasma Cutting Torch Procurement in Brazil’s Industrial Sector

Brazil’s industrial landscape—spanning heavy manufacturing hubs in São Paulo (ABC Paulista), shipbuilding operations along the Rio de Janeiro coastline, mining infrastructure in Minas Gerais and Pará, and agricultural machinery production across Rio Grande do Sul and Mato Grosso—demands robust, high-precision thermal cutting equipment. As structural steel fabricators and original equipment manufacturers (OEMs) upgrade from oxy-fuel cutting to high-definition mechanized plasma arc cutting, finding a dependable Plasma Cutting Torch Supplier in Brazil becomes a critical strategic imperative.

Information Gain Insight: Operating high-duty plasma arc torches in tropical industrial environments requires specialized thermal management. Electrical input fluctuations across Brazilian municipal grids (ranging from 220V multi-phase to 380V/440V industrial lines at 60Hz) paired with high humidity levels accelerate electrode consumption if torches lack optimized dual-gas shielding and high-grade copper-tellurium nozzles.

Whether deploying manual air plasma cutters for maintenance, repair, and overhaul (MRO) tasks in sugar and ethanol bio-refineries, or integrating multi-axis CNC gantry plasma torches into shipyard plate profiling lines, procurement managers must evaluate suppliers based on thermal efficiency, arc stability, consumable durability, and compliance with Brazilian regulatory safety norms such as NR-10 (Electrical Safety) and NR-12 (Machinery Safety).

Localized Application Scenarios across Brazilian Industrial Hubs

Tailored thermal cutting and automated welding solutions designed for Brazil’s primary economic sectors.

Offshore Oil & Gas (Santos & Campos Basins)

Subsea equipment fabrication, pressure vessel vessel shell beveling, and heavy stainless steel plate cutting for FPSO topside modules. Torches must maintain arc concentration when cutting super duplex stainless steel and thick carbon steel plate up to 50mm.

Agro-Industrial Machinery (Mato Grosso & Paraná)

Continuous-duty cutting of wear-resistant alloy steels (such as Hardox grade plates) for combine harvester chassis, sugarcane transport trailers, and grain storage silos. High-frequency start torches provide clean edges that require zero post-cut grinding.

Mining Infrastructure (Carajás & Quadrilátero Ferrífero)

Heavy structural steel processing, excavator bucket rebuilding, and conveyor system repair in high-abrasion iron ore mining environments. Heavy-duty carbon arc gouging torches and 160A–200A plasma cutters handle continuous maintenance cycles.

Engineering Excellence: Plasma Torch Anatomy & Thermal Dynamics

Understanding the physics behind extended consumable life and high-definition cut fidelity.

Optimized Constricted Arc Geometry

The performance of an industrial plasma torch is governed by the vortex gas flow dynamics surrounding the hafnium-tipped copper electrode. Advanced torch designs incorporate helical swirl rings that compress the ionized gas jet as it exits the nozzle orifice. This constriction increases current density to exceeding 15,000 A/cm², creating an extremely concentrated thermal beam capable of melting metal instantly while blowing away molten slag with high-velocity auxiliary air flow.

For Brazilian manufacturers processing structural steel I-beams, pipeline spools, and boiler drums, optimized arc constriction directly translates to lower angularity (less than 2° bevel angle), reduced dross adhesion, and minimal heat-affected zones (HAZ)—preserving the mechanical integrity of high-tensile parent metals.

Dual-Gas Fluid Cooling & Tropicalization

In high ambient temperature zones across Northern and Northeastern Brazil, liquid-cooled plasma torches offer distinct operational advantages over air-cooled torches. By circulating high-flow liquid coolant directly around the nozzle chamber and electrode seat, internal operating temperatures are kept drastically lower during 100% duty-cycle cutting runs.

Furthermore, our IGBT inverter-based plasma power sources feature potted circuit boards and tropicalized insulation coatings that resist dust accumulation, high humidity, and coastal salt mist corrosion, ensuring long-term operational uptime in coastal shipyards and remote mining sites.

Comparative Matrix: Torch Specifications for Mechanized vs. Manual Cutting

Technical Parameter Heavy Mechanized Plasma Torch (160A–200A) Medium CNC Plasma Torch (100A–120A) Handheld Air Plasma Torch (40A–80A)
Primary Cutting Application Automated Gantry CNC / Pipe Profiling Light CNC Tables & Carriage Cutting Manual MRO, On-Site Structural Repair
Duty Cycle Rating (IEC 60974-1 @ 40°C) 100% @ 160A / 200A Continuous 80% – 100% @ Rated Amperage 60% – 80% @ Maximum Amperage
Production Pierce Thickness (Carbon Steel) Up to 32 mm (1-1/4") Up to 20 mm (3/4") Up to 12 mm (1/2")
Severance Cut Capacity 50 mm – 65 mm 35 mm – 40 mm 25 mm – 30 mm
Cooling Mechanism High-Flow Liquid Coolant Recirculation Dual-Gas Cooled / Liquid Option Forced Air Cooled
Gas Shield Capability Dual-Gas (Air/O2/N2/H35 Combinations) Single or Dual Compressed Air Clean Compressed Air

Procurement & Supply Chain Strategy for Brazilian Importers

Streamlining import processes, tax compliance, and grid integration for industrial machinery.

NCM Classification & Duty Optimization

Industrial plasma cutting torches and power sources imported into Brazil fall under specific Mercosur Common Nomenclature (NCM) codes (such as NCM 8456.40.00 for water-jet or plasma arc cutting machines). Working with an experienced exporter ensures accurate documentation to utilize available tariff reductions (Ex-Tarifário) where applicable.

Electrical Grid Adaptation (60Hz / Multi-Voltage)

Unlike European 50Hz equipment, industrial power supplies in Brazil operate on a 60Hz frequency with regional voltage variances (e.g., 220V 3-phase in parts of SP, 380V in Southern states, and 440V in heavy industrial complexes). Our IGBT inverter units incorporate wide input voltage compensation (±15%) to maintain arc stability despite voltage sags.

Port Logistics & Spare Parts Stocking

Navigating customs clearance at primary ports such as Porto de Santos (SP), Porto de Paranaguá (PR), or Porto de Suape (PE) requires complete air waybill/bill of lading documentation, Certificate of Origin, and technical compliance data sheets. We provide full export packaging and localized spare parts kits to prevent supply chain bottlenecks.

Enterprise Authority: Advanced Power Sources Manufacturing Capabilities

Why fabricators and distributors across South America partner with our engineering facility.

In-House R&D and IGBT Inverter Design

Unlike traders who rebrand off-the-shelf power sources, Advanced Power Sources Limited designs control PC boards, high-frequency arc initiation circuits, and software algorithms completely in-house. Our Valsad, Gujarat facility operates under strict ISO 9001:2015 quality management systems, subjecting every machine to full load-bank testing before export dispatch.

Turnkey Automated Cutting & Welding Packages

From standalone plasma cutting torches to integrated column and boom seam welders, circumferential tank welders, welding positioners, and CNC gantry machines—we supply the entire cutting and welding chain. A single OEM vendor point of contact simplifies warranty support, parts standardization, and technical assistance.

Request Technical Catalog & Supplier Quote

Frequently Asked Questions (FAQ) for Procurement Teams in Brazil

Technical and commercial answers addressing common inquiries from Brazilian metal fabricators.

How do I select the right plasma cutting torch capacity for structural steel cutting in Brazil?

Selecting the appropriate torch capacity depends on your primary material thickness and production mode. For continuous hand cutting of steel under 16mm, an 80A air plasma system is sufficient. However, for CNC mechanized cutting of plate thicknesses up to 25mm–32mm with a 100% duty cycle, a 160A or 200A liquid-cooled plasma cutting torch system is strongly recommended to maintain high cutting speed and prevent thermal shutdown.

Can your plasma cutting power sources adapt to Brazil’s 60Hz 220V / 380V / 440V electrical grids?

Yes. All export power sources manufactured by Advanced Power Sources are specifically configured for 60Hz operation with built-in voltage stabilization modules. When submitting your inquiry, specify your facility's input voltage (e.g., 220V 3-phase, 380V 3-phase, or 440V 3-phase) so our engineering team can configure the input transformer tap and circuit protection accordingly.

What consumables (electrodes, nozzles, swirl rings) are recommended to keep in stock?

We recommend maintaining a minimum 5:1 consumable ratio of nozzles to electrodes for heavy production lines. High-grade copper-tellurium nozzles and silver-hafnium electrodes are essential for high-current plasma arc cutting. We supply pre-packaged "First-Year MRO Spare Kits" along with initial machine shipments to ensure uninterrupted operation at your shop floor.

What compliance standards do your plasma torches and welding machines meet?

Our manufacturing plant operates under ISO 9001:2015 management systems. Power sources are built to international standards (IEC 60974-1), featuring IP21S to IP54 enclosure protection classes. Electrical layout and emergency stop interfaces can be aligned with Brazilian NR-10 and NR-12 workplace safety regulations.

How long does shipping take to major Brazilian ports such as Santos or Paranaguá?

Standard sea freight transit time from Indian ports (Nhava Sheva / Mundra) to main Brazilian ports (Santos, Paranaguá, Rio de Janeiro) ranges from 30 to 45 days. Expedited air freight for spare parts and consumable torches is typically delivered within 5 to 7 business days.

What is the advantage of liquid-cooled plasma torches over air-cooled torches in humid Brazilian regions?

In hot and humid regions (such as Manaus, Belém, or coastal areas), air-cooled torches suffer from reduced heat dissipation, leading to premature nozzle orifice erosion and electrode oxidation. Liquid-cooled torches circulate closed-loop coolant directly to the consumable tip, keeping temperatures consistent and extending consumable lifespan by up to 300% under continuous high-amperage cutting.

Upgrade Your Cutting Capacity with a Reliable Plasma Torch Supplier

Partner with an ISO 9001:2015 certified manufacturer offering high-duty plasma torches, welding automation, and custom thermal cutting engineering for Brazilian fabricators.
