High-efficiency weld end preparation machinery customized for nuclear, semiconductor cleanroom, shipbuilding, and petrochemical piping projects across Japan.
In high-integrity Japanese industrial sectors—ranging from Tokyo Electric Power Corporation (TEPCO) nuclear facilities to Kumamoto’s expanding semiconductor mega-fabs—the margin for error in pipe end preparation is absolute zero.
As an authoritative manufacturer and international exporter of pipe processing equipment, our engineering framework directly addresses the strict metallurgical and geometrical criteria enforced across Japan. Modern Japanese fabrication yards are transitioning away from manual angle grinding and oxy-fuel torch cutting due to stringent regulatory overhauls by the Ministry of Economy, Trade and Industry (METI) and the High Pressure Gas Safety Act (Kōatsu Gasu Hoan Hō).
Traditional thermal cutting introduces micro-cracking, carbide precipitation, and phase transformation along the pipe margin. Our portable split-frame cold pipe cutters and ID-mounted beveling systems utilize chip-thinning mechanical lathe technology. This preserves the base material's grain structure, satisfying JIS Z 3604 (Recommended Practice for Pipe Welding) and ASME Section IX requirements without requiring secondary thermal stress relief.
Customized mechanical configurations engineered for specific regional manufacturing imperatives across the Japanese archipelago.
The explosive growth of semiconductor fabrication facilities in Kyushu (Silicon Island) demands particulate-free, perfectly square tube ends for automatic orbital TIG welding. Our light-weight narrow-space ID chamfering machines (like the ISC-73) execute high-precision facing and 37.5° beveling on SUS316L Electropolished (EP) stainless steel tubing with mirror-like surface finishes (Ra < 0.2 µm), ensuring zero contamination of ultra-pure gas (UPG) lines.

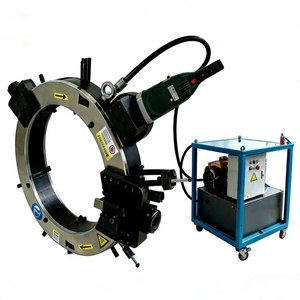

Radioactive containment environments require rapid tool setup and remote operational capabilities to minimize technician exposure. Our pneumatic and hydraulic split-frame pipe cutting and beveling machines (ranging from 26" to 48") feature quick-clamping dog-leg mechanisms. These OD-mounted units perform simultaneous cold cutting and J-prep beveling on heavy-wall duplex stainless steel and Inconel cooling lines under restricted radial clearances.
Handling liquefied natural gas at -162°C necessitates nickel-alloy steel piping (e.g., 9% Ni steel) with stringent compound bevel profiles (V-prep, U-prep, and compound J-prep). Our heavy-duty OD pipe beveling tools ensure exact land thickness and angle tolerances, enabling 100% volumetric X-ray radiograph pass rates during pipeline tie-ins.
Japanese shipbuilders pioneering ammonia-fueled and hydrogen-powered vessels rely on our 8-Axis CNC Plasma Pipe Profile Cutting and Beveling Machines. These gantry systems execute complex 3D saddle cuts, intersection joint beveling, and structural tubular profiling, eliminating hundreds of manual labor hours per vessel hull module.
Tight pitch boiler water-walls present severe spatial limitations. Portable inner-diameter (ID) expansion tube bevelers allow maintenance crews to slip into tube gaps as small as 35mm. Equipped with custom titanium-aluminum-nitride (TiAlN) coated HSS cutter bits, these tools rapidly bevel high-temperature alloy tubes (such as STBA24/T22) during scheduled plant shutdown turnarounds.
A direct metallurgical comparison illustrating why Japanese Quality Assurance (QA) managers specify mechanical cold cutting for critical energy infrastructure.
| Evaluation Parameter | Cold Mechanical Beveling (Our Systems) | Oxy-Fuel / Thermal Torch Cutting | Manual Hand Grinding |
|---|---|---|---|
| Heat-Affected Zone (HAZ) | Zero (100% Cold Process) | Severe (1.5mm - 4.0mm HAZ depth) | Moderate (Localized surface overheating) |
| Bevel Profile Accuracy | ±0.05 mm (Machine Precision) | ±1.5 mm to ±3.0 mm | Irregular / Operator-Dependent |
| Bevel Geometry Capabilities | V, J, U, Compound, Facing, Squaring | Simple V-Bevel Only | Rough V-Bevel Only |
| JIS Weld Inspection Pass Rate | 99.8% First-Time Pass Rate | Requires Extensive Grinding Prep | High Risk of Radiographic Porosity |
| Jobsite Workplace Safety | Zero sparks, zero open flame, low noise | High fire risk, hazardous fumes | High ergonomic vibration & dust hazard |
| Tooling ROI in Japan Yards | High (Re-sharpenable HSS/Carbide bits) | Low gas consumption cost, high labor reworking | Extremely high labor cost overhead |
How structural economic shifts in East Asia dictate the future adoption of automated pipe preparation machinery.
Japan faces an acute shortage of veteran certified welders (*Takumi* craftsmen). To bridge this skill gap, engineering firms are replacing manual end-preparation with automated double-head hydraulic chamfering machines and 3K-6K fiber laser tube cutters. Automated beveling ensures that entry-level technicians achieve flawless root faces and joint alignment every single cycle.
Under Japan’s Basic Hydrogen Strategy, industrial clusters in Kansai and Chubu are building dedicated hydrogen and ammonia supply lines. Hydrogen embrittlement risks require ultra-smooth bevel surfaces without micro-grooving. Our specialized CNC pipe processing units create custom orbital prep shapes certified for high-pressure gaseous hydrogen containment.
Combining international engineering expertise, ISO-certified precision, and direct manufacturer accountability.
Every beveling machine undergoes strict load testing, run-out accuracy checks, and continuous duty testing prior to export shipment.
We supply Japanese voltage-compliant drives (100V / 200V 50Hz/60Hz), Metabo electric motors, and high-efficiency Parker pneumatic drives.
Our engineering team holds proprietary patents for split-frame mounting geometry, core gear stability, and anti-vibration tool posts.
We maintain full stock of HSS-Co, TiAlN tool bits, clamping shoes, and replacement drive gears for immediate air shipment to Japan.
Direct technical answers addressing voltage requirements, JIS compliance, delivery logistics, and custom machine configurations.
Yes, absolutely. We specifically assemble electric motors tailored for the Japanese market. We supply 100V single-phase and 200V three-phase configurations compatible with both Eastern Japan (Tokyo, Tohoku - 50Hz) and Western Japan (Osaka, Nagoya, Kyushu - 60Hz) regional power grids. Pneumatic and hydraulic drive options are also fully customizable to your plant's air compressor supply specs.
JIS Z 3604 specifies exact bevel angles (e.g., 30° to 37.5°), root land thickness, and squareness tolerances for pipe butt welding. Our machines feature rigid self-centering clamping systems (ID expansion or OD split-frame) and precision-ground tool holders. This eliminates chatter marks and guarantees bevel tolerances within ±0.05 mm, ensuring instant compliance for radiographic and ultrasonic non-destructive testing (NDT).
For standard carbon steel (like STPG370), we supply high-speed steel (HSS) bits. For high-alloy materials commonly used in Japanese LNG and chemical plants—such as SUS316L, Duplex 2205, Inconel 625, and Hastelloy—we manufacture M42 Cobalt-enriched (HSS-Co 8%) tool bits and custom TiAlN-coated carbide inserts that prevent work-hardening and maximize tool life.
Yes. Our ISC series and split-frame OD-mounted cutters are specifically designed for low radial clearance applications (such as boiler tube banks and nuclear plant pipe racks). With a minimum radial profile clearance starting from 60mm, these machines can slide between tight pipe bundles without demanding extensive structural teardowns.
Standard portable ID and OD beveling machines are kept in stock for dispatch within 3–5 business days. Customized CNC 8-axis plasma bevelers or heavy-duty hydraulic split-frame systems typically take 3 to 4 weeks for manufacture and factory acceptance testing (FAT). Express air freight to Narita (NRT) or Kansai (KIX) takes 2–4 days, while sea freight to Tokyo/Yokohama or Kobe takes approximately 7–10 days.
Yes. We engineer custom form cutter bits based on your exact Welding Procedure Specification (WPS). Whether you require a narrow-gap J-prep with a 5° slope and 1.5mm land radius, or a double V-prep for thick-wall pressure vessels, our CAD tool design team produces exact-match carbide and HSS tool bits tailored to your project.
All machines come with a 12-month comprehensive manufacturer warranty covering core mechanical components, gearboxes, and motors. We provide detailed English/Japanese operation manuals, video step-by-step setup guides, and direct technical support via video call with our lead mechanical engineers. Spare parts orders receive priority dispatch within 24 hours.
Speak directly with our application engineering team to evaluate pipe material thickness, select optimized drive options, and receive immediate factory-direct pricing for your project in Japan.
